Getting Started¶

The Context Menu¶

The context menu is split into five parts. The first part is the standard Copy and Paste for text that has been highlighted with the mouse. There are shortcuts too:

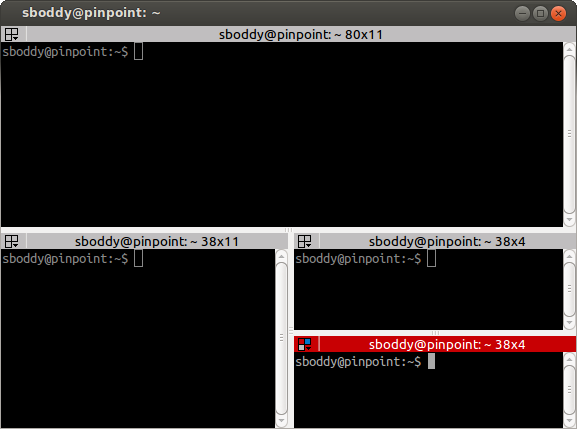

The second section is where the fun starts. Split Horizontally and Split Vertically are used to divide the current space for the current terminal half. Your original terminal takes the top/left half, and a new terminal is started and placed in the right/bottom half. You can repeat this as often as you wish, sub-dividing down until the terminals are completely impractical. Here’s a window that is split Horizontally, Vertically, and Horizontally again:

Between the terminals you can see a space that is a splitter grab handle. You can grab these and drag them, and the terminals will resize. In this way Terminator acts a lot like a tiling window manger. It lets you arrange many terminals in a single view, allowing adjustments as your needs change.

The last item in this part of the menu is to Open tab. This will give you a tab like most other terminal programs. Unlike most other terminals, in Terminator you can also split the terminals in each tab as often as you like.

The third part of the menu will Close the current terminal. It’s on its own to prevent accidents.

The entries in the fourth part allow you to temporarily focus on one terminal. Zoom terminal will zoom into the current terminal hiding all other terminals and tabs, and increasing the the size of the font. This can be handy to eliminate distractions, give yourself a bit more space for the current task, or even when giving presentations or training. Maximise terminal is almost identical, except that it does not increase the size of the terminal font.

When you are zoomed or maximised it is not possible to split terminals, or create new tabs, so the entries for those actions disappear from the menu. So too do the zoom and maximise options, and in their place is a Restore all terminals entry. This will take you back to your windows original layout, and restore the font size if necessary.

The fifth part of the menu has three items. Show scrollbar will toggle the scrollbar on a per terminal basis. There is also a way to define this in the Profiles. Preferences lets you configure and tune Terminator to better suit your needs and is further described here. Lastly, Encodings will allow you to select a different encoding to the default of UTF-8.

There are actually additional optional items that can be added to the menu that will only be shown if you enable those Plugins that add menu items.

Navigating around¶

Apart from the obvious of clicking the terminal for focus, there are a number of shortcuts that will move the focus around:

Once the Context menu is visible, it can be navigated with the arrow keys.

Click-able items¶

Terminator can make strings of text that match a pattern click-able. The user can perform two additional actions on these when the mouse pointer hovers overs the item:

• Ctrl+click

  Will try to open the item in a suitable program depending on what the type of the item is (see below).

• right-click

  Will add two entries to The Context Menu:

  • Open link - Same as Ctrl+click

    The description might be different depending on the type of the item (see below).

  • Copy address - Copies the URL to the clipboard

    In some types this may be converted into a different form depending on what the item represents.

Here are the built-in formats understood:

URL	Note	Made up example, Don’t use!
news://user@host:port/path		news://steve@news.example.org:1234/announce
telnet://user@host:port/path		telnet://steve@insecure.example.,org:1234
nntp://user@host:port/path		nntp://steve@news.example.org:1234/announce
file://user@host:port/path		file://steve@localhost/var/log/syslog file:///var/log/syslog
http://user@host:port/path	+ https://	http://steve@www.example.org/index.html
ftp://user@host:port/path	+ ftps://	ftp://steve@ftp.example.org/var/log/
webcal://user@host:port/path		webcal://steve@webcal.example.org/today
wwwhostname.domain:port/path		www-server.example.org/index.html www.example.org
ftphostname.domain:port/path		ftp-server.example.org/var/log/ ftp.example.org
VoIP
callto:user:number@path		callto:steve:0123456789@not/sure/here
h323:user:number@path		h323:steve:0123456789@not/sure/here
sip:user:number@path		sip:steve:0123456789@not/sure/here
E-Mail
mailto:name@host		mailto:steve@example.org
News
news:name@host:port		news:steve@news.example.org:1234

These are just the ones built-in by default to Terminator. The Plugins can extend this further with a URL Handler, although strictly speaking it does not have to be a URL - as can be seen from some of the above - just a well defined pattern that can be matched.

Changing the current layout¶

I’ve already used the term layout a few times in this page already. I should define what exactly is meant by a layout.

A layout describes the collection of windows in the current process, the tabs, and how the windows and tabs are divided up into terminals. It also includes the positions, dimensions, as well as other aspects related to how Terminator looks.

Besides the items in the The Context Menu there are three main methods to adjust the layout.

Using the splitters¶

So, by now you’ve probably made a few splits and used the mouse to drag them about, and you now have something resembling the following, minus the highlights:

Terminator lets us rebalance the terminals, equally dividing the available space between the siblings.

The different highlighting shows the siblings. The key thing to understand is that the blue splitters are considered siblings, which are children of the green parent. The green is itself a child of the red parent. By double-clicking the splitter, the space will be divided evenly between the siblings. So, double-clicking any of the blue splitters will give:

If instead we double-click on the green splitter, we get:

But there’s more! We can use two modifier keys to rebalance more collections of siblings. Shift+double-click the splitter and all children, grandchildren, and so on, will be rebalanced. Super+double-click and all parents, grandparents, and so, on, will be re-balanced. You guessed it! Shift+Super+double-click and all visible terminals will be rebalanced. It will not affect terminals in other windows or tabs.

Shift+double-click on green:

Super+double-click on green:

Shift+Super+double-click on green:

Dragging and dropping a terminal¶

There are two ways to drag a terminal from one location to another with in the window. The simplest is to use the titlebar at the top of each terminal. Simply click-drag, and you will be able to hover over the other terminals and drop the dragged terminal to move it:

Here you can see a preview of the dragged terminal - scaled if large - and shading to show which area it will cover, which can be the top, bottom, left or right of an existing terminal.

The above action results in the following:

The other way to drag a terminal can be done from within the terminal with Ctrl+right-click-drag. With this method once you start the drag, you must release the Ctrl key before releasing the right-mouse-button. If you do not the drag will cancel.

You can drag between tabs by initiating a drag and hovering over the tab. Terminator will switch to the tab under the cursor, you can then drag to the desired position, and the terminal can be dropped.

You can also drag between Terminator windows provided the windows are part of the same process. By default all windows will be part of the same process. Windows will not be part of the same process if you deliberately turn off the DBus interface with the Preferences or the Command line options when starting Terminator up. Layouts are also currently isolated at a process level for technical reasons.

Resetting the terminal¶

There are two shortcuts available for fixing the terminal if it starts to misbehave.

The scrollbar and scrollback buffer¶

As already mentioned, there is a Context Menu item to toggle the scrollbar. There is also a shortcut listed here.

In addition there are shortcuts for moving up and down in the scrollback buffer with more flexibility:

Search the buffer¶

It is possible to search the buffer, although at this time there is a limitation that the found string is not highlighted.

Resulting in a search bar at the bottom of the focused terminal:

This has buttons for moving back and forward through the results, as well as an option to wrap the search around.

Zooming the terminal¶

As mentioned above it is possible to zoom into and out of a terminal. There are also some modifiers to zoom more than just the current terminal.

Setting Titles¶

If you’re anything like me, you’ve spent time clicking among the half a dozen different terminals in the taskbar, trying to find the right one. Or maybe for you it is with tabs.

In Terminator you can rename three things:

Additionally all three can be saved/loaded from a layout, or the window title can be set using a command line option.

Insert terminal number¶

These shortcuts let you enumerate your terminals. It is handy if you need to login to a number of sequentially numbered machines. With multiple terminals the ordering may seem strange, but this is due to the nature of the splitting and the order in which the splits were performed.

These actions can also be done from The Grouping Menu.

Next/Prev profile¶

It is possible to cycle back and forth through the available profiles that are defined in the Profiles tab of the Preferences Window, changing the behaviour and appearance of the current terminal.

In both cases there is currently no default shortcut set. I’m not convinced they would be used often enough to warrant assigning them. For those that find it useful, the feature is there to be configured.
